SD-2W Sampling and Bottom Dryness Device MMC Asia

This comprehensive tank gauging and safety equipment is designed to meet international maritime standards, ensuring safe and precise cargo handling, monitoring, and sampling on oil tankers. By integrating multiple gauging functions, including ullage, temperature, oil-water interface detection, and vapor concentration measurement, this system provides reliable and compliant performance in demanding marine environments. The equipment is compatible with tank gauging stations (vapor locks) installed on tank tops and supports various regulations, including SOLAS, MARPOL, and ISGOTT standards.

    Send Us Message

    Key Features and Benefits

    • Ullage Gauging & Temperature Measuring

      • Description: Measures cargo oil volume, oil level, temperature, and oil-water interface in real-time with a portable gauging device, helping determine accurate cargo volume.
      • Benefits:
        • Offers high accuracy by adjusting for temperature and natural water-oil separation.
        • Portable setup provides flexibility compared to fixed systems, beneficial for deckside gauging and cargo surveys.
        • Supports “Closed” gauging requirements for enhanced safety.

    • Oil-Water Interface Detection (IMO Requirement)

      • Description: Quickly detects the interface between oil and water in slop tanks to comply with MARPOL pollution prevention requirements.
      • Benefits:
        • Ensures accurate separation of oil and water, essential for pollution prevention and regulatory compliance.
        • Approved for use in slop tanks and other cargo tanks, helping preserve marine environments.

    • Cargo Liquid Sampling

      • Description: Facilitates cargo liquid sampling using “Closed sampling” equipment, which minimizes vapor release and protects personnel.
      • Benefits:
        • Provides samples for cargo analysis without releasing harmful vapors, supporting ISGOTT safety standards.
        • Simple integration with existing tank gauging stations (vapor locks) on deck for seamless sampling.

    • Tank Bottom Dryness Checking (IMO Requirement)

      • Description: Ensures tank bottoms are dry after crude oil washing using gauges or hand dipping, as specified by MARPOL.
      • Benefits:
        • Prevents contamination by verifying tank dryness, supporting tanker safety and pollution prevention.
        • Allows efficient, manual verification across multiple tank locations, ensuring comprehensive compliance.
        •

    • Oxygen & Flammable Vapor Concentration Measurement

      • Description: Measures oxygen and flammable vapor levels in cargo tanks to ensure safe, controlled environments before crude oil washing.
      • Benefits:
        • Critical for monitoring and maintaining oxygen levels below 8%, as per MARPOL standards.
        • Portable, accurate detection helps reduce inert gas leakage, supporting safe tank conditions.

    • Inert Gas Pressure Gauging

      • Description: Monitors inert gas pressure during crude oil washing to ensure positive pressure in the atmosphere of cargo tanks.
      • Benefits:
        • Allows continuous monitoring of tank conditions, preventing unsafe gas levels.
        • Enhances the effectiveness of crude oil washing procedures, maintaining compliant safety protocols.

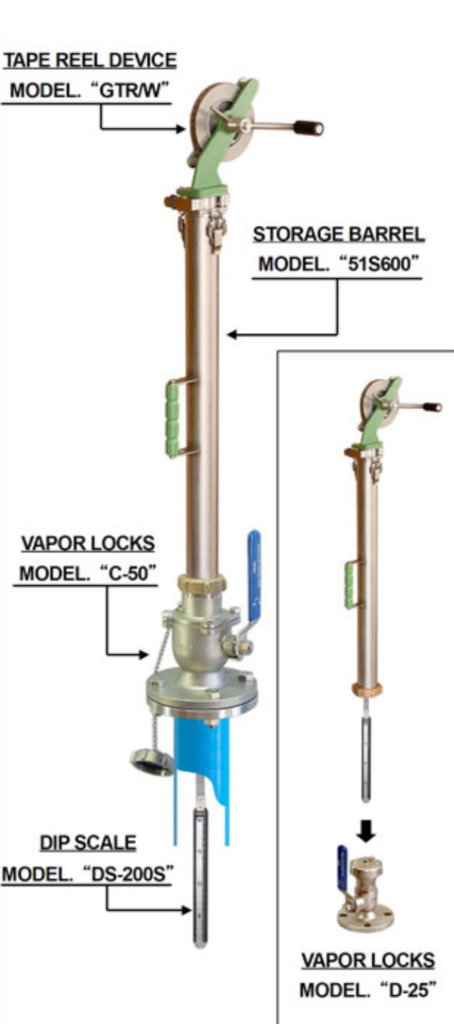

    • Tank Gauging Station (Vapor Locks)

      • Description: Provides a closed system to prevent gas leakage during gauging operations and maintains safe pressure levels.
      • Benefits:
        • Prevents vapor release and enhances gauging accuracy by matching the ullage zero level.
        • Protects operators from exposure to harmful gases, promoting safer working conditions.

    • Grounding (Earthing) of Gauging Device

      • Description: Grounds the portable gauging device when connected to the tank gauging station, dissipating static electricity.
      • Benefits:
        • Minimizes static discharge risks, enhancing safety for personnel and equipment.
        • Protects against static-induced sparks, essential in high-risk environments.

    • Ease of Use and Improved Safety

      • Description: The portable gauging device is designed for convenient one-handed operation on the tank top.
      • Benefits:
        • Simplifies gauging tasks, allowing operators to complete tasks efficiently.
        • Prevents accidental dropping or damage to equipment, ensuring consistent performance.
